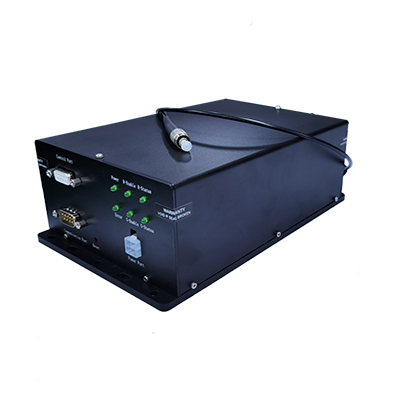

多波长光纤激光器

可选波长

Optional Wavelength

405nm, 488nm, 520nm, 532nm, 638nm, 660n, 785nm, 808nm（定制双波长、三波长、四波长、五波长等）(Double,Wavelength, Three Wavelength, Four Wavelength,

Five Wavelength ect.,)

波长公差

Wavelength Tolerance

±5nm

输出功率

Output Power

30mW, 50mW, 100mW, 500mW, 1000mW, 2000mW, 5000mW, 10000mW etc.,(Customizable）

长期功率稳定性 (%)(8 hrs., ±3°C)

Long-Term Power Stability

±2%

多模光纤规格@芯径与数值孔径

Multi-mode fiber spec@fiber core diameter and  numerical aperture

400um/385x385um/150x450um@0.22N.A (Customizable)

噪声@20 Hz to 20 MHz

Noise

RMS

< 0.5 %

Pk to Pk

<3 %

功率可调节性

Power adjustability

10-100%

光纤输出端口类型

Fiber connector

FC/APC,FC/PC,SMA905

光纤保护套大小

Fiber protective sleeve size

0.9mm /2.0mm/3.0mm

光纤输出的近场不均匀度

Near-field non-uniformity of optical fiber output beam

<20%

光纤长度

Fiber length

0.5-2m(Customizable)

调制光脉冲上升下降沿

Rising and falling time of modulated optical pulses

<1ms

预热时间

Warm-up Time

>3mins

底板温度

Laser Head Baseplate Temperature

20 to 40℃（Working）; -20 to 60℃（Non-working）

热沉

Heat Dissipation

10-300W

湿度

Humidity

15% - 90%

操作接口（可选）

Control Interface(Optional)

远程出光控制 ON/OFF；功率监控及外部功率调节0-3.3V,/RS232/RS485通信可选

Laser control ON/OFF; Power Monitoring and external power regulation 0-3.3 V; USB/RS232/RS485 communication optional

DC Drive(Optional)

24V/Imax=1-10A

交流驱动（可选）

Drive Control Accessories(Optional)

可提供自带交流电源的CDRH盒

CDRH box with AC power supply

激光辐射等级

Laser radiation level

Class 3B or Class 4

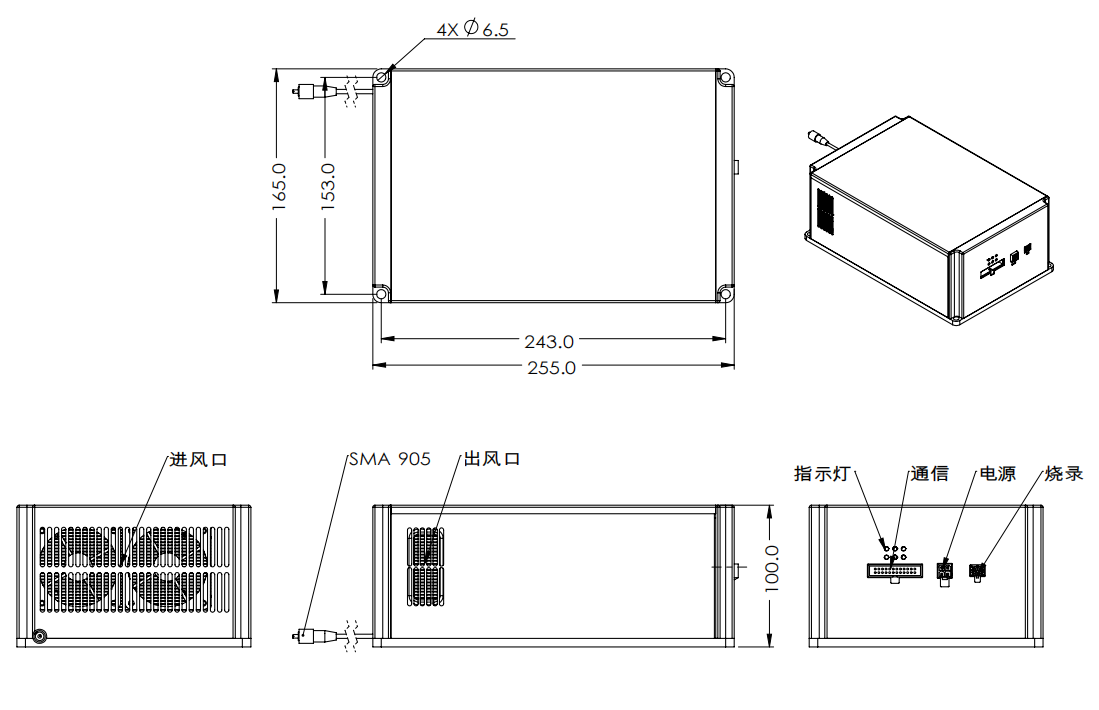

Size

255×165×100mm(Customizable)
